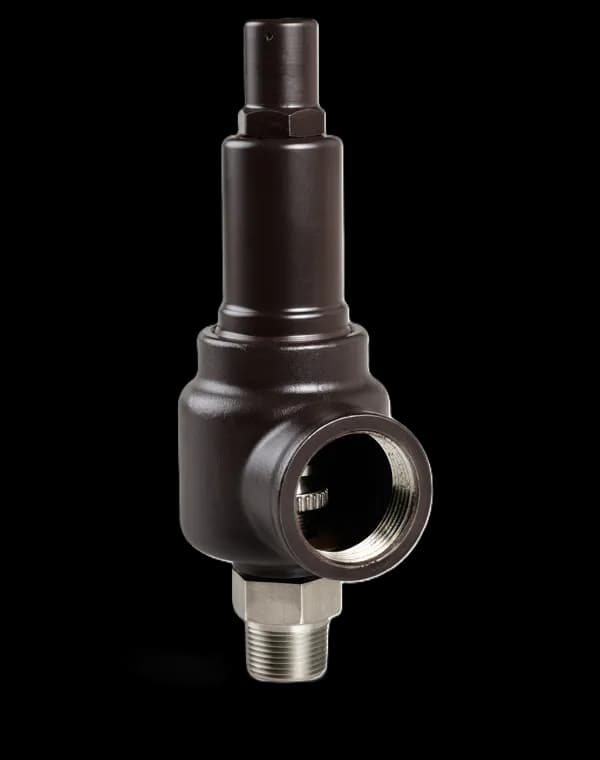

AQUATROL 742 Series Safety Relief Valve

Air

Gas

Liquid

Steam

AQUATROL 742 Series Safety Relief Valve

Air

Gas

Liquid

Steam

Inlet Connections

DN15 - DN80 | 1/2" - 3" (NPT/BSP/ANSI Flanged)

Pressure Rating

0.1 - 103.4 Bar | 15 - 1500 PSI ~ Air/Gas/Liquid
0.1 - 20.7 Bar g | 15 - 300 PSI ~ Steam

Temperatures

-20°C to 427°C | -29°F to 800°F

Approvals

ASME VIII Div 1, CE & CRN

Downloads

Applications
Suitable for all General Industry applications that require by-pass or over-pressure protection.
- Pressure Vessels
- Pumps
- Hydraulics
- Tanks
- Steam Systems
- Chemical
- Cryogenic
- Air and Gas Compressors
- Separators
Features
- Full WCB Body Construction with 316 Stainless Steel Inlet & Trim
- Full nozzle – Top guided design
- Short, precise blow-down
- Wide choice of inlet/outlet sizes
- Dual-lapped precision seating
- 100% Back-pressure tight
- Drain hole with threaded plug
Options
- Flanged Connections
- O-ring seating options (see datasheet)
- Packed lift lever or Closed cap
- BSPT Piping
- Full array of material options
- API 527 Seating
- Lap Joint Flanges
Datasheets

AQUATROL 740 Series Catalogue AQUATROL 742 Series Sectional Drawing (Threaded Connection) AQUATROL 742 Series Sectional Drawing (Flanged Connection)
