GOETZE Series 481 Pressure Reducing Valve

product image

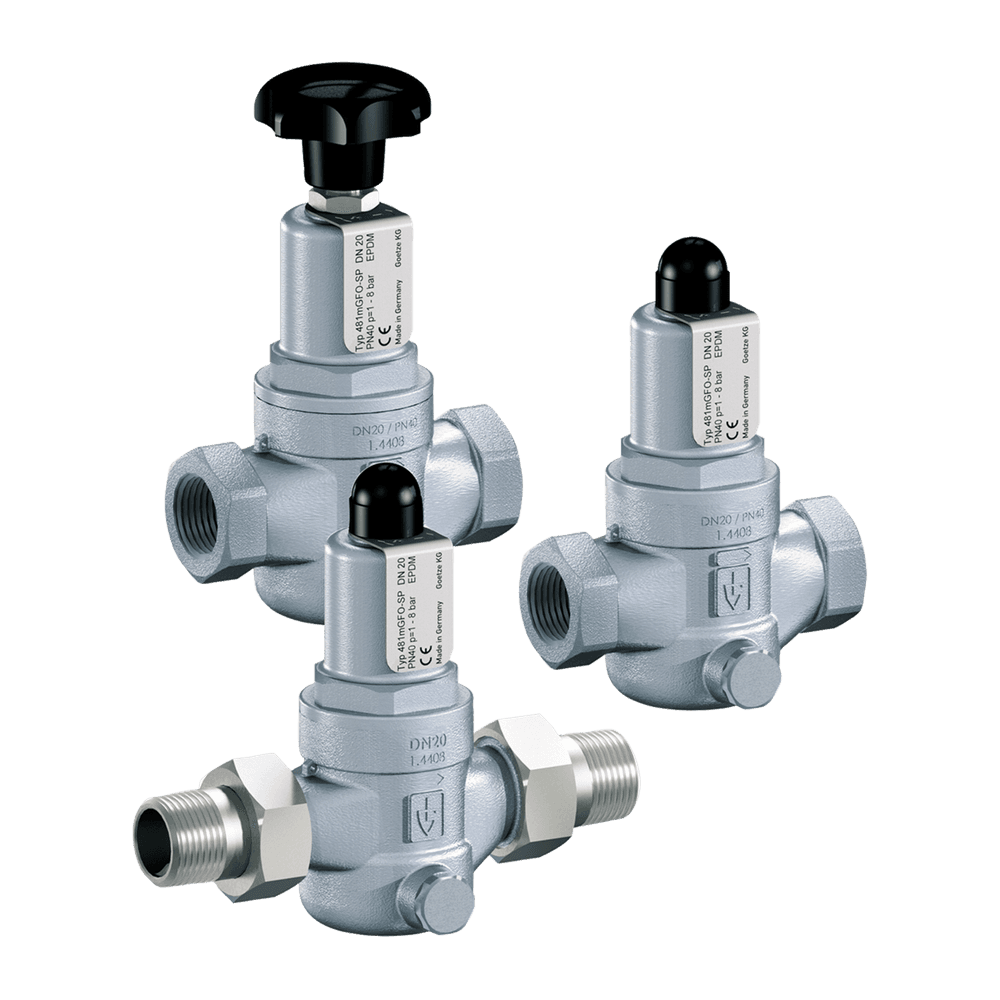

GOETZE Series 481 Pressure Reducing Valve


DN15 - DN50 (1/2" - 2")
BSP & NPT Threaded

Body Material

Stainless Steel

Operating Pressures

Inlet Pressures up to 40 Bar
Outlet Pressures 0.5 - 15 Bar

Operating Temperatures

–20°C to + 120°C

  • Applications

    The Series 481 is a particularly robust pressure reducing valve in all-metal design, which has proven itself not only in drinking water applications but also in harsh operating conditions in industrial applications or in cases of fluctuating environmental temperatures. This pressure reducing valve is also suitable for hot water applications. Stability and reliability: The set outlet pressure at zero-usage is held constant even in the case of greatly varying inlet pressures.

    The Series 481 Pressure Reducing Valve allows the protection of:

    • Domestic water supply systems
    • Commercial and industrial plants against too high supply pressure.

    Pressure reducers are used, if within a piping system despite of varying pressures on the inlet side a certain pressure must not be exceeded on the
    outlet side.

    • Potable water supply according to DIN 1988
    • Process water supply in industrial-and building technology
    • Snow-making equipment
    • Fire-fighting equipment and sprinkler systems
    • Shipbuilding industry and offshore plants
    • Secondary areas in the food-, pharmaceutical- and cosmetics- industries.
